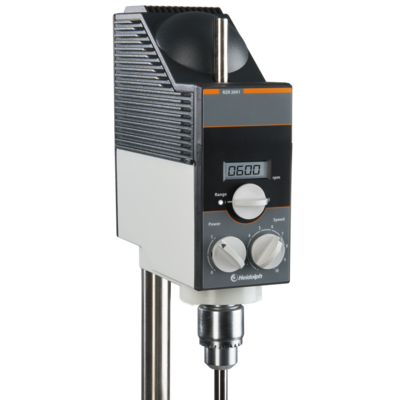

RZR 2041

Spare Parts search

Spare parts

Pos. No. P/N Item V/Hz Model PE ME
1 11-001-201-35-0 Capacitor motor (RZR 2041) -- 230V 230V NO LONGER AVAILABLE 1 PI 0
1 11-001-201-36-0 Capacitor motor (RZR 2041) -- 115V 115V 1 PI 0
1 11-001-201-37-0 Capacitor motor (RZR 2041) -- 240V 240V no longer available 1 PI 0
1 11-001-201-38-0 Capacitor motor (RZR 2041) -- 100V 100V 1 PI 0
2 22-02-06-01-14-0 Friction cone (RZR 2020 / 2021 / 2041) 1 PI 0
3 13-225-005-10-0 PCB Motor (RZR 2041) 230V RZR 2041 1 PI 0
3 13-116-005-04-0 PCB Motor (RZR 2041) -- 115V 115V RZR 2041 1 PI 0
3 13-116-005-06-0 PCB Motor (RZR 2041) -- 100V 100V RZR 2041 1 PI 0
4 14-007-005-40-1 Cable with plug EU (RZR 2020/2021/2041) EU 1 PI 0
4 14-007-005-52-0 Cable with plug US (RZR 2020/2021/2041) US 1 PI 0
4 14-007-005-56-0 Cable with plug CH (RZR 2020/2021/2041) CH 1 PI 0
5 11-008-003-89-1 Friction ball (RZR 2020-1/2041) no longer available 1 PI 0
6 22-03-03-01-49-0 Tension spring (RZR 2020/2021/2041) 1 PI 0
7 11-009-004-53-1 Spare part kit: Gear stage 1 (RZR 2020-1/2041) from 04/2006 1 PI 0
11-001-501-54-0 Spare part kit: Stage 1 incl. upper casing (RZR) to 03/2006 1 PI 0
8 23-08-06-01-58-0 Rubber ring 38x46x4 1 PI 0
9 11-008-014-77-1 Front panel (RZR 2041) no longer available 1 PI 0
11 11-003-015-21-0 Output shaft cpl. 1 PI 0
12 23-07-06-04-32-1 Fork (RZR 2020/2021/2041) 1 PI 0
13 11-008-014-79-0 LCD Display with angle (RZR 2020-1/2041) RZR 2021 1 PI 0
16 14-007-044-02-1 Micro switch (RZR 2041) 1 PI 0
14-002-028-09-0 Fuse TR5 T 1,0A/250V 230V 1 PI 0
509-02000-00-0 Chuck 10 mm (RZR 2xxx) 1 PI 0
22-02-14-01-08-0 Support rod 13x160 mm (RZR 20xx/21xx) 1 PI 0
20-004-044-26-0 Left side section painted (RZR 20xx / 21xx) 1 PI 0
20-004-044-27-0 Right side section painted (RZR 20xx / 21xx) 1 PI 0
20-004-044-47-0 Rear housing (RZR 20xx) 1 PI 0
22-02-08-01-17-0 Bearing (RZR 2020/2021/2040/2041) 1 PI 0
23-08-04-02-08-0 Bearing (RZR 2020/2021/2040/2041) 1 PI 0

Service Documents

RZR2041_drawing_Zeichnung.pdf Download
RZR2041_circuit_diagram_Schaltplan.pdf Download
