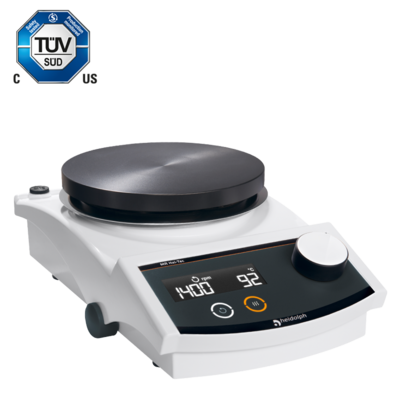

The following overview shows various magnetic stirrer models with different technical conditions.
The base unit is always the 230V version. We differentiate the technical condition of each magnetic stirrer model with indices (last digit of each part number):
| article number | Index | |||||
| MAGNETR. MR HEI-TEC 230/240V 50/60HZ | 505-30000-00- | 0 | 1 | 2 | 3 | 4 |
| MAGNETR. MR HEI-TEC 115V 50/60HZ | 505-30000-01- | 0 | 1 | 2 | 3 | 4 |
| MAGNETR. MR HEI-TEC 115V 50/60HZ 135MM | 505-30000-13- | 0 | 1 | 2 | 3 | |
| MAGNETR. MR HEI-TEC 230V 50/60HZ 135MM | 505-30000-14- | 0 | 1 | 2 | 3 |
Spare parts
MR Hei-Tec Index 0-1
| Pos. No. | P/N | Item | V/Hz | Model | PE | ME | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 11-013-505-11-2 | EC-Motor (MR) | 1 | PI | 0 | |||
| 2 | 11-013-505-08-4 | Heating plate concave Ø145 (MR) -- 800W/230V | 1 | PI | 0 | |||
| 2 | 11-013-505-09-4 | Heating plate concave Ø145 (MR) -- 600W/115V | 1 | PI | 0 | |||
| 2 | 11-013-505-18-1 | Heating plate concave Ø135 (MR) -- 800W/230V | 135 mm | 1 | PI | 0 | ||
| 2 | 11-013-505-19-1 | Heating plate concave Ø135 (MR) -- 600W/115V | 135 mm | 1 | PI | 0 | ||
| 3 | 13-926-002-01-3 | PCB Base (MR Hei-Tec) -- 230V | 230V | 1 | PI | 0 | ||
| 3 | 13-926-002-07-3 | PCB Base (MR Hei-Tec) (Index 0-1) -- 115V | 115V | 1 | PI | 0 | ||
| 5 | 13-001-505-01-2 | PCB Display (MR Hei-Tec) (Index 0-1) | 1 | PI | 0 | |||
| 6 | 14-002-028-16-0 | Fuse TR5 T 10A/250V UL/CSA | 115V | 1 | PI | 0 | ||
| 14-007-003-81-1 | Power cord EU | 230V | 1 | PI | 0 | |||
| 14-007-003-92-1 | Power cord CH | 230V | 1 | PI | 0 | |||
| 14-007-045-10-0 | Power cord US | 115V | 1 | PI | 0 | |||
| 14-007-045-40-0 | Power cord CN | 1 | PI | 0 | ||||
| 5 | 14-300-009-36-0 | Power cord IN | 230V | 1 | PI | 0 | ||
| 14-007-005-45-0 | Power cord UK | 240V | 1 | PI | 0 | |||
| 14-007-045-52-0 | Power cord (BR) | 1 | PI | 0 | ||||
| 8 | 14-007-047-92-0 | Cable harness (mains plug) (MR) | 1 | PI | 0 | |||
| 9 | 14-007-047-93-0 | Cable harness (switch) (MR) | 1 | PI | 0 | |||
| 10 | 14-007-047-97-0 | Cable harness (contact thermometer MR) | 1 | PI | 0 | |||
| 14 | 11-013-505-13-1 | Rotary knob | from 12/2010 | 1 | PI | 0 | ||
| 18 | 14-014-003-27-1 | Temperature sensor 2x Pt 1000 | 1 | PI | 0 | |||
| 19 | 14-001-007-48-0 | Short-circuit plug (MR Hei-Standard / Tec) | 1 | PI | 0 | |||
| 26 | 23-05-02-05-49-1 | Distance bolt heating plate (bottom) | 1 | PI | 0 |
MR Hei Tec Index 2
| Pos. No. | P/N | Item | V/Hz | Model | PE | ME | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 11-013-505-11-2 | EC-Motor (MR) | 1 | PI | 0 | |||
| 2 | 11-013-505-08-4 | Heating plate concave Ø145 (MR) -- 800W/230V | 1 | PI | 0 | |||
| 2 | 11-013-505-09-4 | Heating plate concave Ø145 (MR) -- 600W/115V | 1 | PI | 0 | |||
| 2 | 11-013-505-18-1 | Heating plate concave Ø135 (MR) -- 800W/230V | 135 mm | 1 | PI | 0 | ||
| 2 | 11-013-505-19-1 | Heating plate concave Ø135 (MR) -- 600W/115V | 135 mm | 1 | PI | 0 | ||
| 3 | 13-225-505-07-1 | SP PCB Base (MR Hei-Tec) -- 230V | 230V | 1 | PI | 0 | ||
| 3 | 13-116-505-07-1 | PCB Base (MR Hei-Tec) (Index 2-4) -- 115V | 115V | 1 | PI | 0 | ||
| 5 | 13-001-505-01-3 | PCB Display (MR Hei-Tec) (Index 2-4) (MR Hei-Connect) (Index 0) | 1 | PI | 0 | |||
| 6 | 14-002-028-16-0 | Fuse TR5 T 10A/250V UL/CSA | 115V | 1 | PI | 0 | ||
| 14-007-003-81-1 | Power cord EU | 230V | 1 | PI | 0 | |||
| 14-007-003-92-1 | Power cord CH | 230V | 1 | PI | 0 | |||
| 14-007-045-10-0 | Power cord US | 115V | 1 | PI | 0 | |||
| 14-007-045-40-0 | Power cord CN | 1 | PI | 0 | ||||
| 14-007-005-45-0 | Power cord UK | 240V | 1 | PI | 0 | |||
| 5 | 14-300-009-36-0 | Power cord IN | 230V | 1 | PI | 0 | ||
| 14-007-045-52-0 | Power cord (BR) | 1 | PI | 0 | ||||
| 8 | 14-007-047-92-0 | Cable harness (mains plug) (MR) | 1 | PI | 0 | |||
| 14-007-047-94-1 | 16-pole cable harness (PCB MR) | 1 | PI | 0 | ||||
| 14-007-047-95-1 | 8-pole cable harness (Motor MR) | 1 | PI | 0 | ||||
| 9 | 14-007-024-07-0 | Cable harness (switch) (MR) | 1 | PI | 0 | |||
| 10 | 14-007-047-99-0 | Cable harness Pt 1000 (MR) | 1 | PI | 0 | |||
| 13 | 14-005-006-31-2 | Front foil (MR Hei-Tec) (Index 2-3) | 1 | PI | 0 | |||
| 14 | 23-30-01-05-93-0 | Control knob (MR) | 1 | PI | 0 | |||
| 18 | 14-014-003-27-1 | Temperature sensor 2x Pt 1000 | 1 | PI | 0 | |||
| 26 | 23-05-02-05-49-1 | Distance bolt heating plate (bottom) | 1 | PI | 0 |
MR Hei-Tec Index 3
| Pos. No. | P/N | Item | V/Hz | Model | PE | ME | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 11-013-505-11-2 | EC-Motor (MR) | 1 | PI | 0 | |||
| 2 | 11-013-505-08-4 | Heating plate concave Ø145 (MR) -- 800W/230V | 1 | PI | 0 | |||
| 2 | 11-013-505-09-4 | Heating plate concave Ø145 (MR) -- 600W/115V | 1 | PI | 0 | |||
| 2 | 11-013-505-18-1 | Heating plate concave Ø135 (MR) -- 800W/230V | 135 mm | 1 | PI | 0 | ||
| 2 | 11-013-505-19-1 | Heating plate concave Ø135 (MR) -- 600W/115V | 135 mm | 1 | PI | 0 | ||
| 3 | 13-225-505-07-1 | SP PCB Base (MR Hei-Tec) -- 230V | 230V | 1 | PI | 0 | ||
| 3 | 13-116-505-07-1 | PCB Base (MR Hei-Tec) (Index 2-4) -- 115V | 115V | 1 | PI | 0 | ||
| 5 | 13-001-505-01-3 | PCB Display (MR Hei-Tec) (Index 2-4) (MR Hei-Connect) (Index 0) | 1 | PI | 0 | |||
| 14-002-028-16-0 | Fuse TR5 T 10A/250V UL/CSA | 115V | 1 | PI | 0 | |||
| 14-007-003-81-1 | Power cord EU | 230V | 1 | PI | 0 | |||
| 14-007-003-92-1 | Power cord CH | 230V | 1 | PI | 0 | |||
| 14-007-045-10-0 | Power cord US | 115V | 1 | PI | 0 | |||
| 14-007-005-45-0 | Power cord UK | 240V | 1 | PI | 0 | |||
| 5 | 14-300-009-36-0 | Power cord IN | 230V | 1 | PI | 0 | ||
| 14-007-045-40-0 | Power cord CN | 1 | PI | 0 | ||||
| 8 | 14-007-047-92-0 | Cable harness (mains plug) (MR) | 1 | PI | 0 | |||
| 14-007-045-52-0 | Power cord (BR) | 1 | PI | 0 | ||||
| 14-007-047-94-1 | 16-pole cable harness (PCB MR) | 1 | PI | 0 | ||||
| 14-007-047-95-1 | 8-pole cable harness (Motor MR) | 1 | PI | 0 | ||||
| 9 | 14-007-024-07-0 | Cable harness (switch) (MR) | 1 | PI | 0 | |||
| 10 | 14-007-047-99-0 | Cable harness Pt 1000 (MR) | 1 | PI | 0 | |||
| 13 | 14-005-006-31-2 | Front foil (MR Hei-Tec) (Index 2-3) | 1 | PI | 0 | |||
| 14 | 23-30-01-05-93-0 | Control knob (MR) | 1 | PI | 0 | |||
| 14-014-003-27-1 | Temperature sensor 2x Pt 1000 | 1 | PI | 0 | ||||
| 26 | 23-05-02-05-49-1 | Distance bolt heating plate (bottom) | 1 | PI | 0 |
MR Hei-Tec Index 4
