Magnetic Stirrers

Safe Heating and Mixing

Hei-PLATE

Magnetic Stirrer

Have you ever heard of hotplates with fast heat-up times and chemical resistance?

Advisor - Find the right device

Heidolph magnetic stirrers are traditionally among the daily lab helpers. Whether in research laboratories in major industries or at universities - everywhere, titration, synthesis or extraction is carried out with the need for the highest precision. Many users count on Heidolph's reliable and durable quality: Made in Germany.

Whether with or without heating function, all our magnetic stirrers have one thing in common: a smooth and powerful stirring that allows low-viscosity media to be mixed by up to 20 liters.

In particular, the magnetic stirrer models with heating function feature a sealed, fireproof die-cast aluminium housing and a unique Kera Disk® plate that combines the advantages of aluminium and ceramic. Each model also has its specific functionalities for your individual needs: from the analog magnetic stirrer (Hei-Standard) to the sophisticated model with timer function and various interfaces (Hei-Connect), you can quickly find your Heidolph magnetic stirrer.

You will also discover a range of necessary accessories as a system solution for pure stirring tasks (stirring bars), for precise temperature control (temperature sensor Pt1000), for the replacement of oil baths (Heat On), for parallel reactions (StarFish) or for revolutionizing reflux reactions (Findenser™). Everything from a single source for efficient work!



Need help choosing the right system? Our specialists are happy to support you!

Application Support

Magnetic Stirrers - Models

Hei-Standard

Simply stir and heat

Hei-Tec

Model for higher requirements with temperature sensor

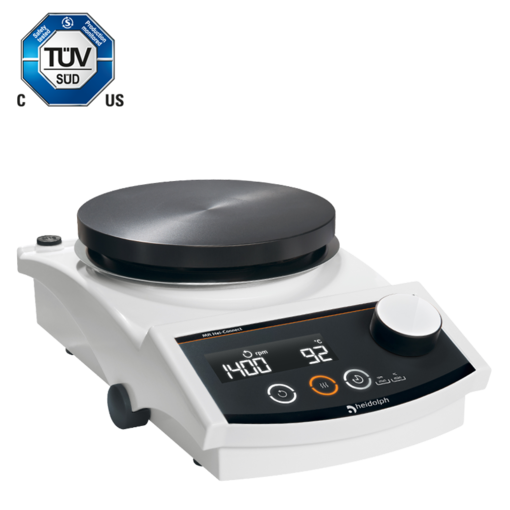

Hei-Connect

Model for comprehensive process documentation and reproducible results

Hei-Mix S

For gentle stirring in biology and microbiology applications - without heating function

Hei-Mix L

For all stirring tasks without heating

Magnetic Stirrers - Packages

Hei-PLATE Silver 1 Package

Hei-PLATE Silver 2 Package

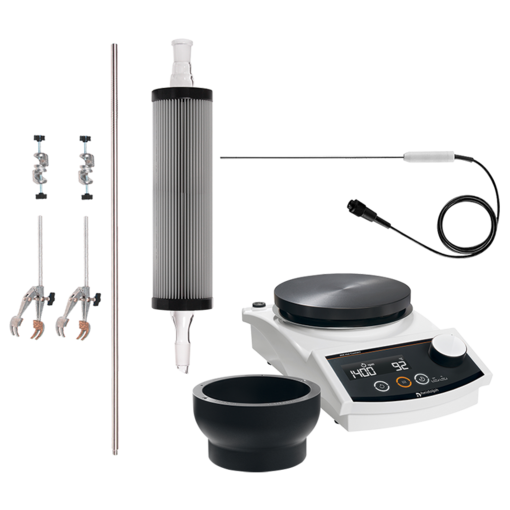

Reflux Package Connect

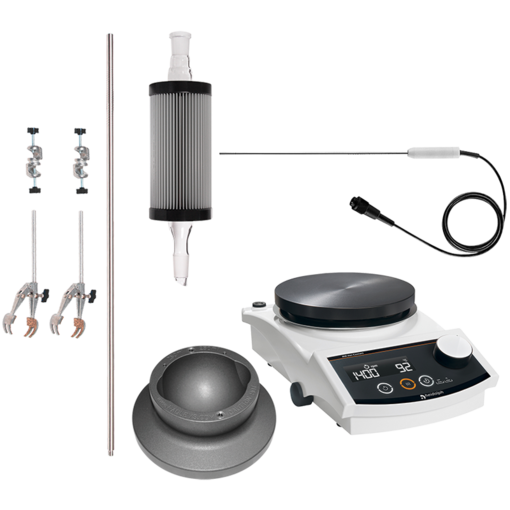

Reflux Package Connect Mini

Reflux Package Tec

Reflux Package Tec Mini

Magnetic Stirrers - AddOns

Heat-On Attachments

StarFish Workstation

Findenser ™

High performance condenser

Magnetic Stirrers - Accessories

1-l Heating bath

PTFE-coated

2-l Heating bath

PTFE-coated

2-l Heating bath for oil

Max. temperature 250 °C

4-l Heating bath

PTFE-coated

4-l Heating bath for oil

Max. temperature 250 °C

Concave block adaptor

Holding device

Silicone protective cover 2

For Hei-Standard

Stirring bars - cross shape (16.5 mm)

Stirring bars - cylindrical shape

Stirring bars - oval shape (15x6 mm)

Stirring bars - oval shape (25x10 mm)

Stirring bars - oval shape (30x10 mm)

Stirring bars Evaluation Kit

Heating bath liquid

Up to 220 °C

Heating bath liquid

Up to 170 °C

Pt1000 clamping system

Pt1000 clamping system for bath attachments from 3 to 5 liter

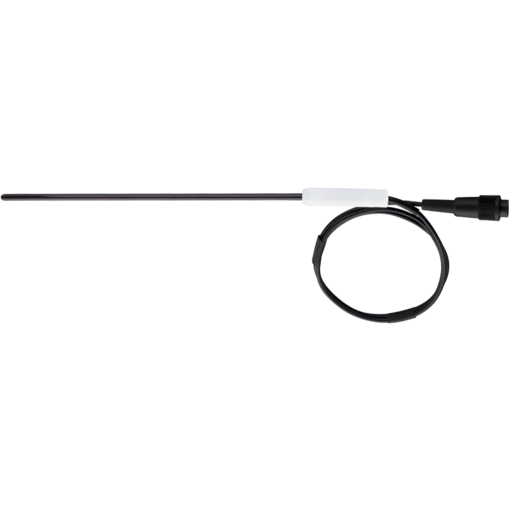

Pt1000 temperature sensor – glass-coated

Pt1000 temperature sensor – stainless steel (V4A)

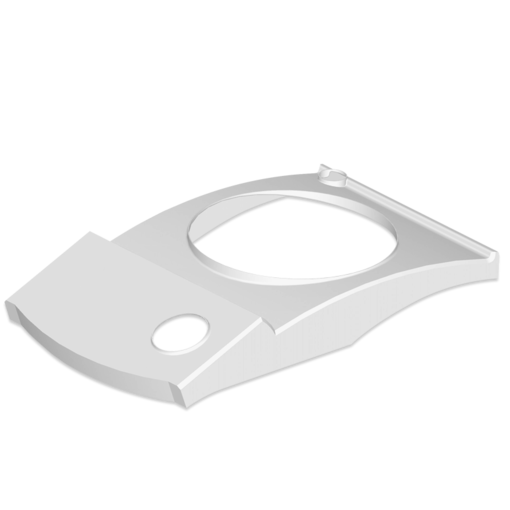

Silicone protective cover 1

For Hei-Tec, Hei-Connect, Hei-End and Hei-Mix L

RS 232 cable (9-pole)

Magnetic Stirrers - Product Advantages

In order to categorically exclude accidents and fire, all models have two independent safety circuits that automatically switch off the hotplate in the event of an unwanted rise in temperature

A combination with Heat-On attachments makes the application even safer

All models are equipped with a visual residual heat indicator to prevent burns

For safety reasons, the device is switched off completely in the event of a short circuit, broken sensor of the temperature sensor, defective motor and in the event of a processor fault

A separate On / Off button for the heating function prevents unintentional heating. The activated heating function is clearly recognizable by the illumination of the button

To prevent any splashing, the rotation speed ramps up slowly until it has reached the desired value

Damage to the device is impossible even at the highest temperatures – all models are equipped with a fire-resistant die-cast housing

Even with the fastest heating times compared to conventional magnetic stirrers, the built-in PID controller guarantees precise control without overshooting the temperature

The unique Kera-Disk® coating is extremely resistant to chemicals and scratches. The hotplate is therefore easy to clean and dirt can be easily removed. A PID controller ensures precise control of the heating process

The powerful stirring magnet allows the stirring rod to be safely entrained even with larger quantities of up to 20 l

If the hotplate fails, the stirring process is not interrupted. This prevents the sample from overheating

Efficient cold insulation prevents condensation in the housing and thus contact between condensation water and electronic components – ideal for working with dry ice

On devices with a display, all parameters can be read from the large, illuminated display, even from a greater distance

With the free software support for the Hei-Connect model, processes can be reliably automated and documented – for up to four devices simultaneously

Clearly shorter process times. The high heating power of 800 Watt enables 35 % faster heating times compared to conventional magnetic stirrers with 600 Watt

Thanks to its aluminum core, the Kera-Disk® hotplate guarantees the fastest heating times. Due to the resistant ceramic coating, the plate is chemical-resistant and scratch-proof

Corrosion-protected electronics add many years to the operational lifespan and reduce expenditure for new purchases

Wear- and maintenance-free motors save repair and spare part costs

The average operational lifespan is on average more than 10 years, thus making your purchase a worthwhile investment

The sealed housing of the magnetic stirrers guarantees a long service life with low susceptibility to repairs

Downloads & Video

Downloads

Gentle but powerful Download
At a glance - Hei-PLATE 2018 Download
NRTL-Certificate-Magnetic-stirrer.pdf Download
Hei-PLATE-Certificate-for-continuous-operation.pdf Download
CE-Magnetruehrer-Magnetic-stirrer.pdf Download

Video

FAQ

It is possible technically, because as soon as the sensor is connected it regulates the temperature. However, there is no digital display to set the exact temperature, since the device has only analog scaling available.

Yes, the magnetic stirrers Hei-Mix S and Hei-Mix L has no heating function.

For larger quantities we recommend alternatively the magnetic stirrer Hei-Mix L.
