Hei-Mix S

Magnetic Stirrers

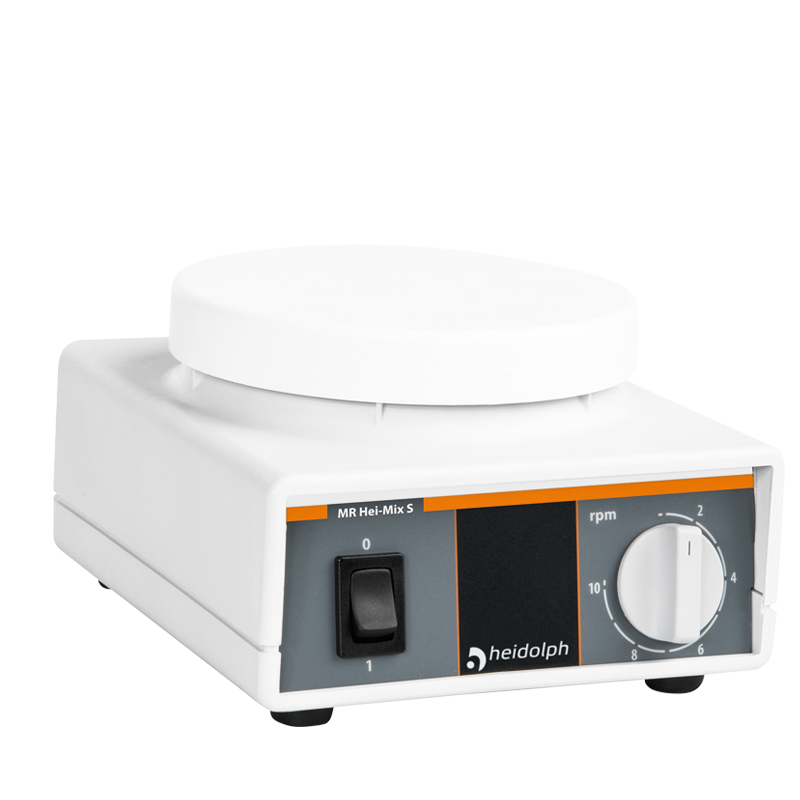

Hei-Mix S

P/N: 503-02000-00

Stirring up to 5 liters without heating

The Hei-Mix S is the first choice for titrations and biochemical applications such as those associated with operating a small fermenter. The PVDF (thermoplastic fluoropolymer) footprint is of white color: In this way, color changes during the application can be precisely tracked.

The Hei-Mix S also has a robust housing made of polyamide and is suitable for continuous operation with stirring volumes of up to 5 liters. Thanks to a wide speed range of up to 2,200 rpm, you can mix your sample quickly but gently. Efficient work is therefore guaranteed.

In addition, you save space in your laboratory because the Hei-Mix S requires only 126 x 80 x 140 mm of space with a footprint of 104 mm in diameter.

Hei-MIX S - Product Advantages

Hei-MIX S - Technical Data

Rotation speed range0 - 2,200 rpm
Speed accuracy±5 %
Max. stirring capacity (H2O)5 l
Hotplate temperature-
Heating power-
Accuracy temperature setting-
Temperature accuracy with external temp. sensor-
Safety circuit hotplate-
Plate diameter ø104 mm
Plate materialPVDF
Sensor breakage protection-
Residual heat indicator-
Smooth start
Analog / digital interface-
Timer-
Protection class DIN EN 60529IP 21

Hei-MIX S - Accessories

Stirring bars - cross shape (16.5 mm)

Stirring bars - cylindrical shape

Stirring bars - oval shape (15x6 mm)

Stirring bars - oval shape (25x10 mm)

Stirring bars - oval shape (30x10 mm)

Stirring bars Evaluation Kit

Downloads

Downloads

Gentle but powerful Download
At a glance - Hei-PLATE 2018 Download
CE-Magnetruehrer-Magnetic-stirrer.pdf Download
NRTL-Certificate-Magnetic-stirrer.pdf Download
Hei-PLATE-Certificate-for-continuous-operation.pdf Download
Operation-Manual-Magnetic-Stirrer-MR-Hei-Mix-S.pdf Download

Video
