Hei-CHILL 250

Chillers

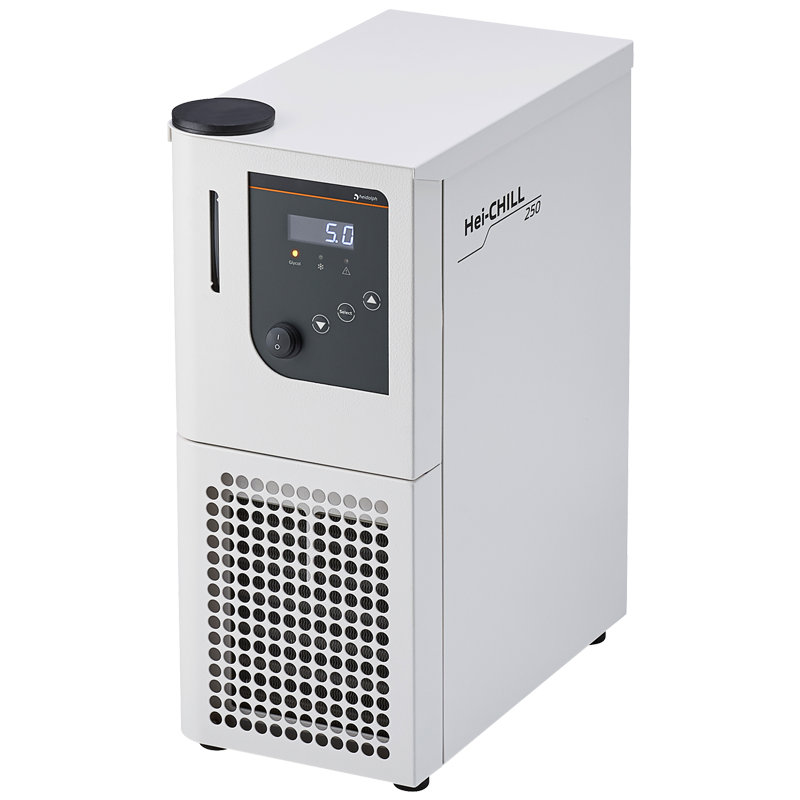

Hei-CHILL 250

P/N: 591-01600-00

The compact design fits effortlessly on a laboratory bench and comes with a cooling capacity of 250 W*

  • Clearly arranged control elements, large LED display, membrane keypad, and window for monitoring the tempering liquid level
  • Automatic start and shut down feature
  • Temperature range from -10 °C to +40 °C
  • Temperature stability of ±0.5 K
  • Cooling capacity at +20 °C; 250 W
  • Footprint of chiller: L 200 x W 350 x H 465 mm

* Cooling output at 20 °C measured with ethanol

Hei-CHILL 250 - Technical Data

Cooling capacity at +20 °C (20 °C ambient temp.)250 W
Temperature range -10 – +40 °C
Temperature accuracy±0.5K
Pump pressure max.0.35 bar
Pump flow max.9 l/min
Thermal fluid fill volume2 – 4 l
Dimensions (w/d/h)200 x 350 x 465 mm

Hei-CHILL 250 - Accessories

Kryo 30 liquid (10 l)

10 l thermal fluid for Hei-CHILL Chillers

Kryo 30 liquid (20 l)

20 l thermal fluid for Hei-CHILL Chillers
